Embossing Membrane Front Panels Nameplates

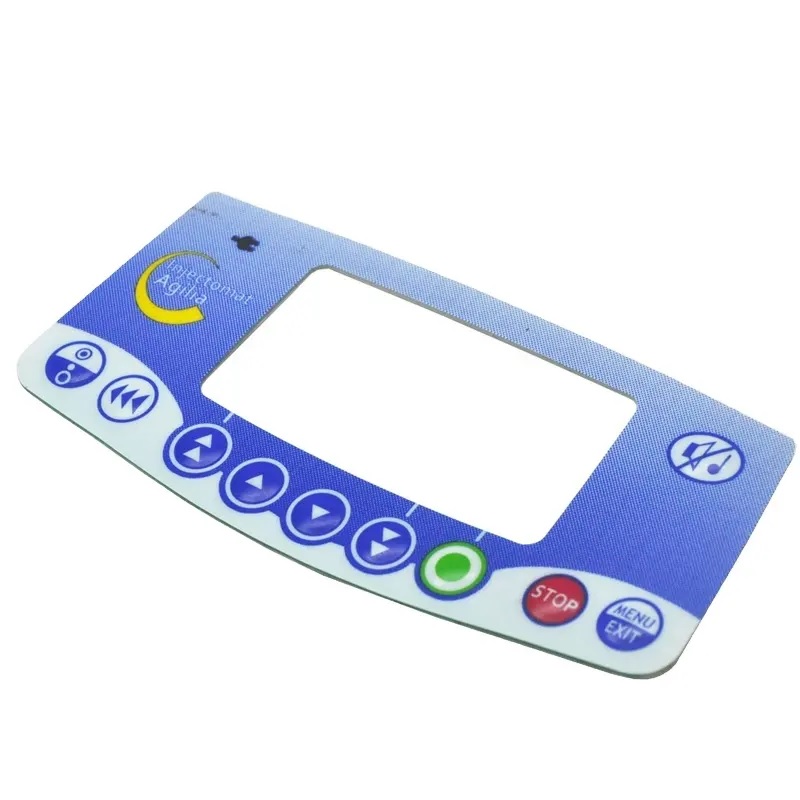

Embossing Membrane Front Panels Nameplates

1.Materials: Polyester,Polycarbonate, Arylic, Metal, Plastic,Aluminum

2.Window:Clear,Dead-Front,Semi-Gloss,Gloss,Matte

3.Pockets, Adhesives and interior cutouts is available

4.Finishes:Anti-glare (low gloss), Gloss, Brushed,Velvet

5.Custom shapes,sizes and color(Pantone, RAL, L*a*b* color)

1.   Customized size and shape

2.   Beautiful appearance with rich color

3.   Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.

4.   Features: small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.

Technology: Good tightness, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof. In-house 100% functionally tested











Available Material
PC, PMMA, PVC, PET, ABS, PP,etc
Commonly used
thickness
PC: 0. 125-6.0mm(matt, anti-glare, anti scratch, anti-uv)
PMMA: 0.5-10.0mm(matt, anti-glare, anti scratch,anti-uv)
Max printing size
1300X700mm
Max cut size
2500X1000mm
Color
As requested
MOQ
100pcs
Double side adhesive
Double side tape etc
Operating temperature
PC: 40-90°    PMMA: -40-80°
Available finish
Anti-glare surface/anti-fog surface/anti-fingerprint surface/Gloosysurface/Frosted surface
Printinng
Silk-screen printing
Shipping method
DHL, Fedex, UPS, etc
Molding method
Cnc cutting or die cutting, without tooling
Advantage
Glossy surface, colorful printing appearance, good texture, safety andeco-friendly
Certificate
IS09001& ROHS &REACH
plastic lens
OEM graphic overlay, front panels, logos, nameplates, stickers, CNCprecision parts and other plastic parts
OEM services
Silk screen printing, custom die cutting/CNC cutting



Overlay Material
PET, PC,Metal,Silicone, Glass,Acrylic
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes
Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001、RoHS、CE、SGS
