Custom Membrane Keypad
PCB Circuit Membrane Switch For Controller
Home /Products /

Membrane Switches

/

PCB Membrane Switches

/

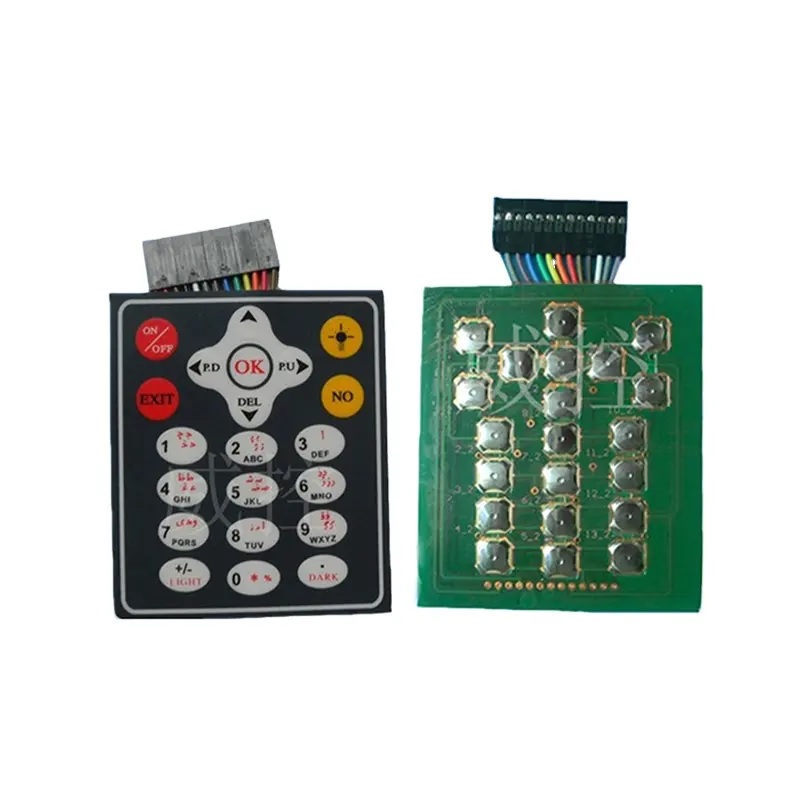

PCB Circuit Membrane Switch For Controller

PCB Circuit Membrane Switch For Controller

1. Flexible Reaction, Customized Panel

2. Life Time >1 million Times: Key Responsive, durable stickness, high temperature resistant

3. IP 65-68 Waterproof design is used for charging pile, weeding machine and other outdoor equipments

4. Clear Printing: Ricb color, not easy to decolorize, not easy to wear

5. Certificate:ISO9001 ISO13485 IATF16949

6. Mainly used in automotive industry, aerospace, electronic devices, medical equipment, solar PV, smart home, HMI Applications



1. Flexible Reaction, Customized Panel

2. Life Time >1 million Times: Key Responsive, durable stickness, high temperature resistant

3. IP 65-68 Waterproof design is used for charging pile, weeding machine and other outdoor equipments

4. Clear Printing: Ricb color, not easy to decolorize, not easy to wear

5. Certificate:ISO9001 ISO13485 IATF16949

6. Mainly used in automotive industry, aerospace, electronic devices, medical equipment, solar PV, smart home, HMI Applications







Main Technical Parameters
(1) Electrical Properties
1.Operating voltage:  ≤ 50VDC
2.Working current:  ≤ 100mA
3.Contact resistance:  0.5 ~ 5Ω
4.Insulation resistance:  ≥ 100MΩ (100VDC)
5.Substrate voltage:  2kDVC
6.Spring time:  ≤ 6ms
7.Loop resistance:  30Ω
8.Insulation ink voltage:  100VDC

(2) Mechanical Properties
1. reliability, service life: > 1 million times
2. closed displacement:

0.1 ~ 0.4mm (no touch-type)

0.4 ~ 1.0mm

3. health standard for power:  280g Power
4. silver migration:

In 55 ℃, humidity 90%, 56

hours later, the second-line between the 10MΩ/50VDC

5. silver online no oxidation, no impurities
6.silver width

 ≥ 0.3mm, the smallest interval of

0.3mm, line edges <1 / 3, the

line gap of <1 / 4 width

7.pin spacing standard  2.54mm
8.lead anti-curvature, with d

10mm steel rod line pressure roller

80 constantly.


(3) environmental performance
1. operating temperature:  -40 ℃ ~ +80 ℃
2. storage temperature:  -40 ℃ ~ +85 ℃ temperature of 95% ± 5%
3. atmospheric pressure:  86 ~ 106kDa

(4) print index
1. print size deviation

± 0.15mm, clear code looks

bad ≤ 0.1mm edges

2. chromatic deviation

± 0.11mm/100mm, insulated cover all

 the Silver Line Ink

3. no ink dispersion, writing non-defective
4. chromatic aberration is not more than two
5. may have creases, paint stripping

6. transparent windows transparent clean, uniform color, not a scratch, and impurity



Overlay Material
PET, PC,Metal,Silicone, Glass,Acrlyic
Artwork Format
CorelDraw, Adobe Illustrator AI, AutoCAD, CDR
Color
Pantone and RALcolor matching system
Button
Embossed/Flat/Metal/Silicone/Rubber
Keys Options
Tactile: metal domes or poly domes
Non-tactile: flat button, printed silver spot on the circuit
Connector Tail
Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
Female connector with 2.54MM pitch
Circuitry option
Silver printed conductive inks, FPC, PCB
Printing
Screen printing, Semi-Auto matic printing, Automatic Printing
Window
Clear or transparent, translucent, red/black/white/green etc transparent window
Surface
Glossy surface or matte surface
Rear Adhesive
3M467,3M468, 3M9080, 3M9495, 3M7959,3M9471, 3M300VHB, etc...
Certificate
ISO9001、RoHS、CE、SGS



GET FREE INQUIRY NOW
We will contact you as soon as possible!
